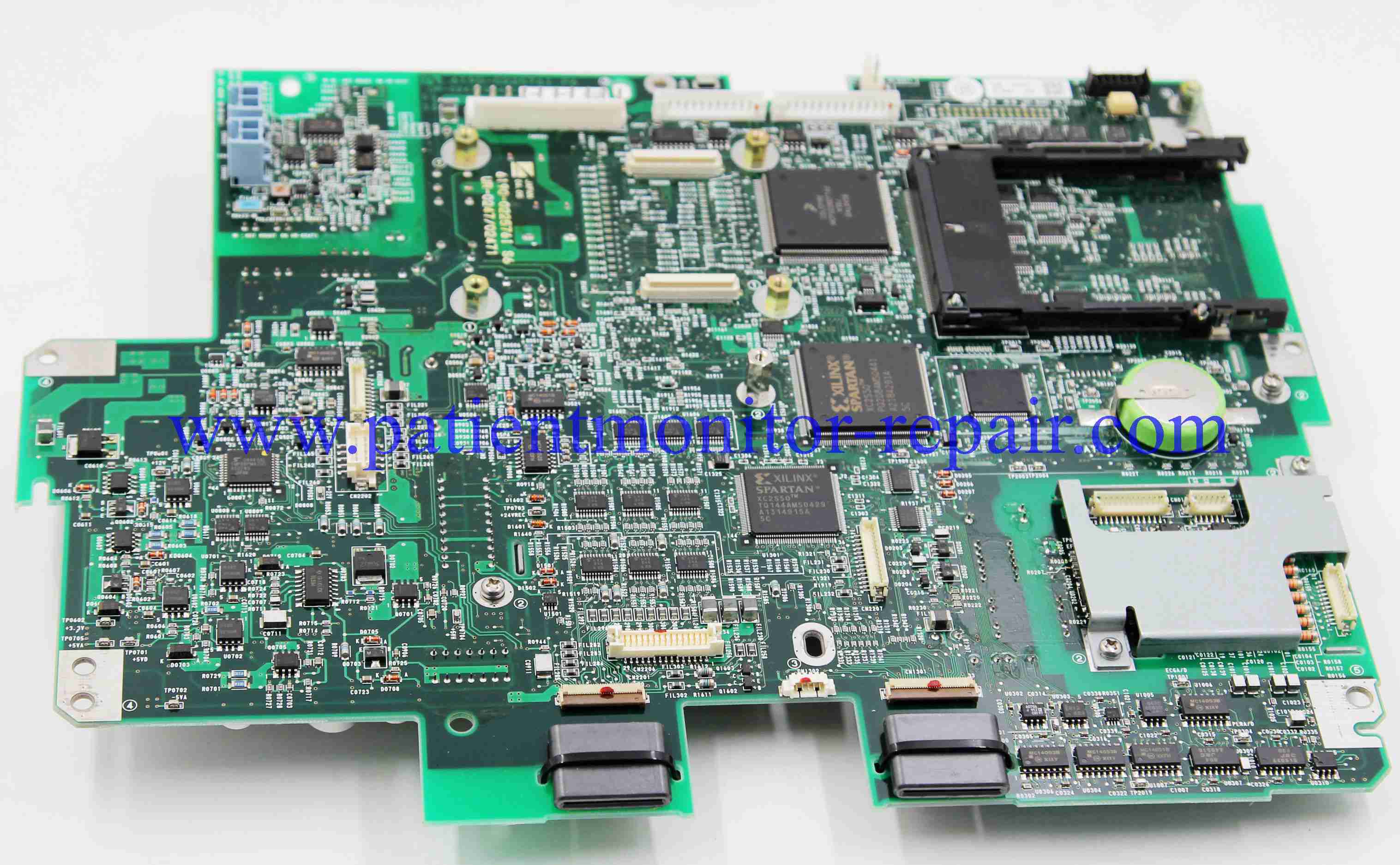

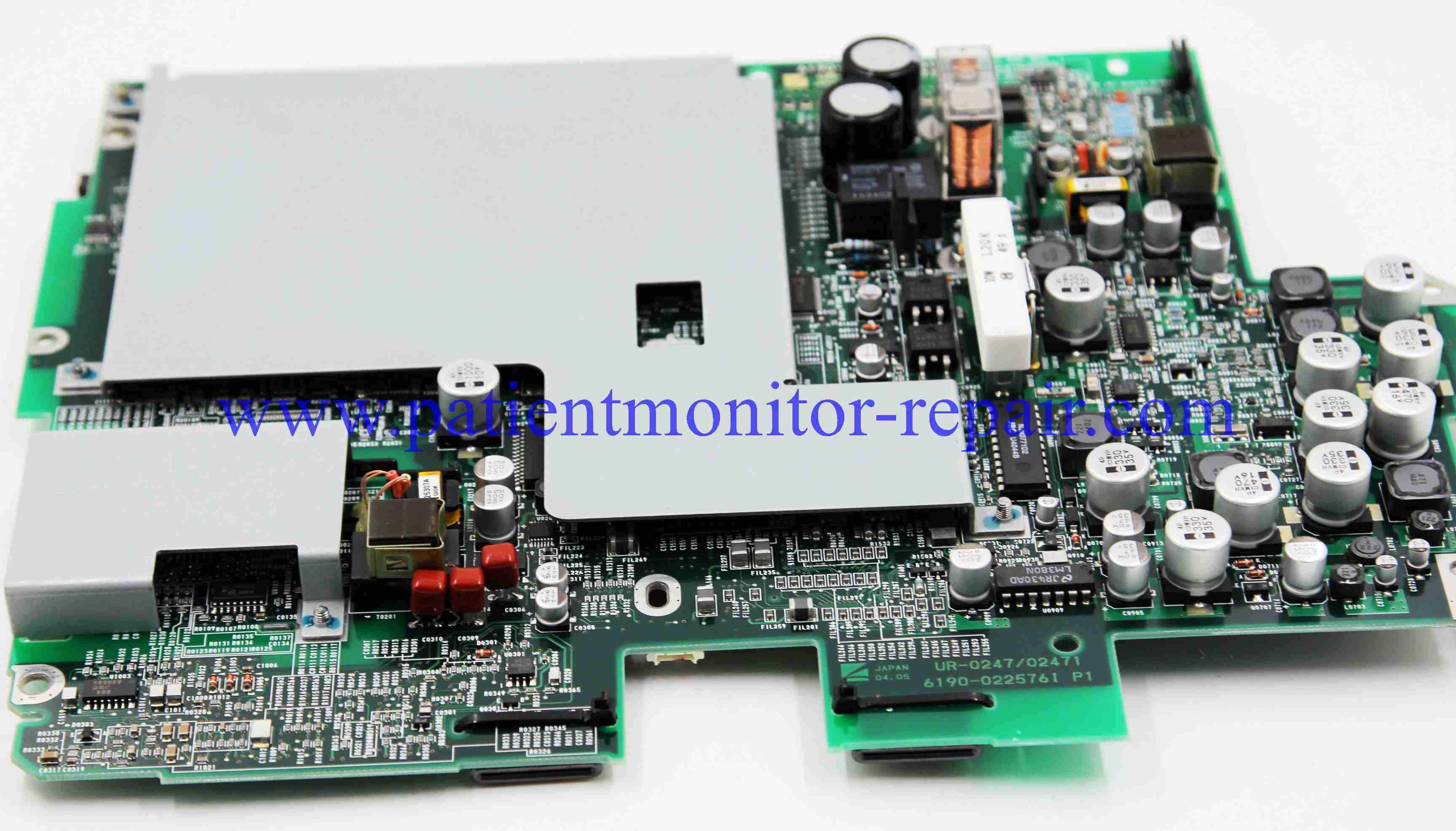

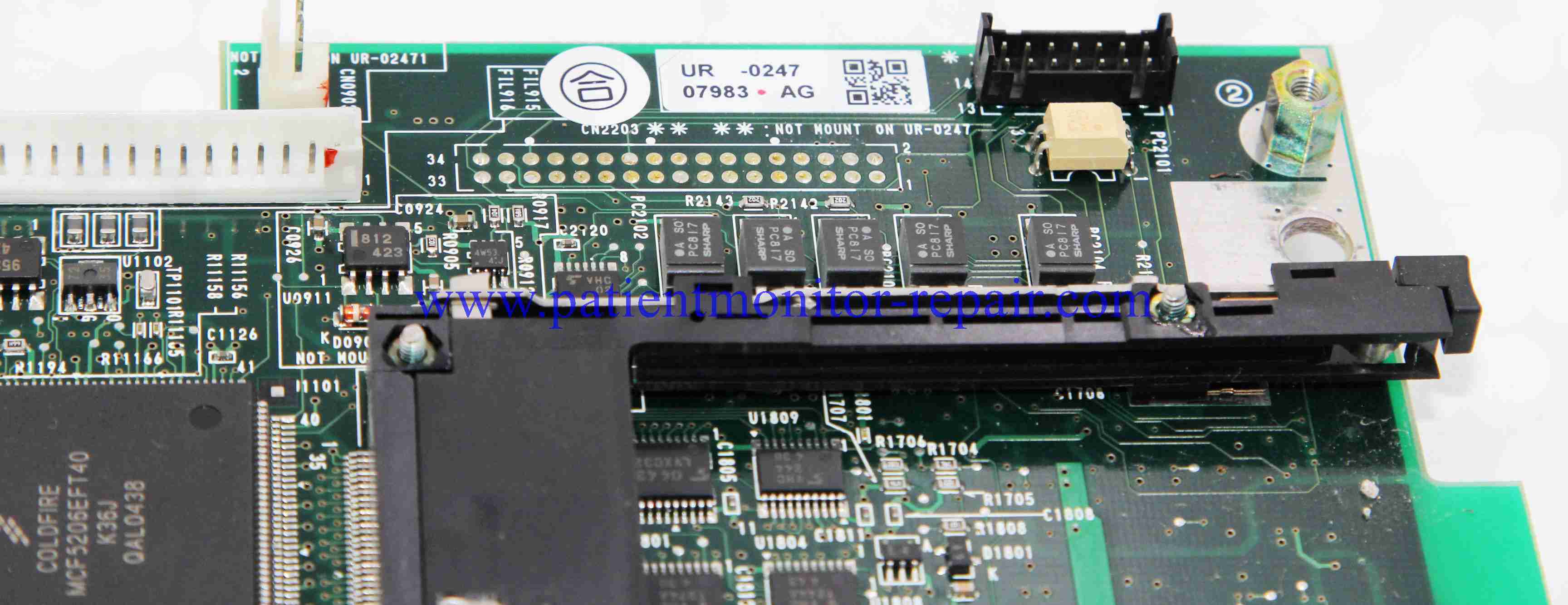

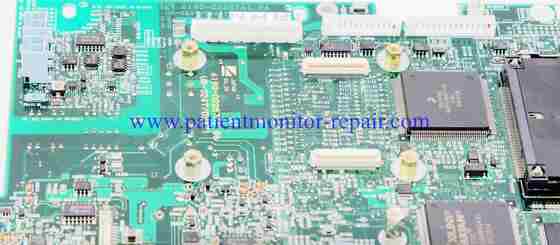

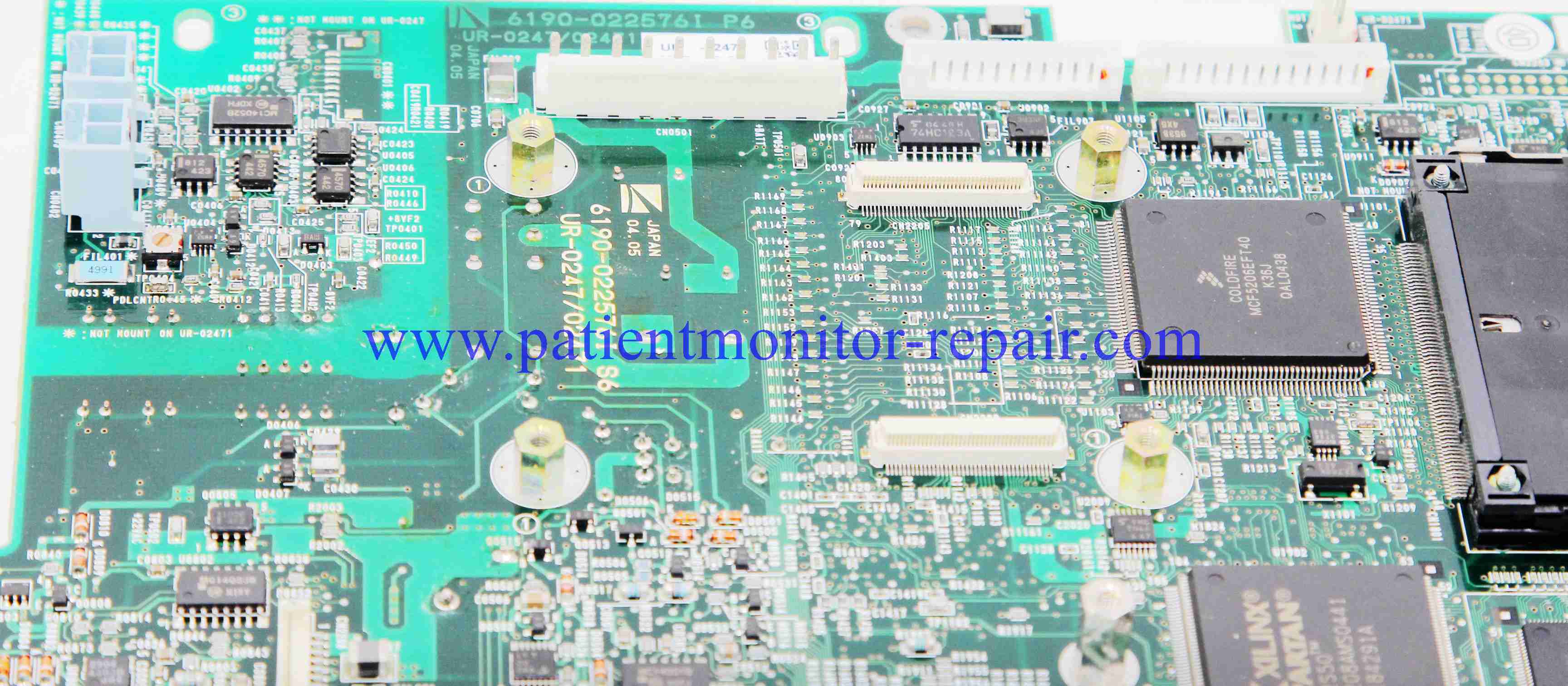

Motherboard NIHON KOHDEN Cardiolife TEC-7631C Defibrillator Mainboard UR-0247

Productomschrijving

Here is a point-by-point guide on how to use the NIHON KOHDEN Cardiolife TEC-7631C defibrillator motherboard.

Important Disclaimer: The motherboard is the core internal component of the defibrillator. "Using" it refers to the procedures for installation, testing, and troubleshooting by qualified biomedical equipment technicians (BMETs) or authorized service personnel. This is not a guide for clinical operation by healthcare providers.

1. Pre-Installation and Safety Precautions

• Verify Compatibility: Confirm the replacement motherboard (P/N: [Insert correct part number here, e.g., 9631-03]) is explicitly compatible with the specific TEC-7631C model and its software version.

• Power Down and Disconnect: Completely power off the defibrillator. Disconnect it from AC mains power and remove the main battery pack.

• Discharge High-Voltage Capacitors: Follow the manufacturer's specified procedure to safely discharge the high-voltage capacitors. This is a critical safety step to prevent lethal electric shock.

• Electrostatic Discharge (ESD) Protection: Don an ESD wrist strap and work on an ESD-safe mat. The motherboard contains highly sensitive integrated circuits that can be easily damaged by static electricity.

• Gather Tools and Documentation: Have the appropriate tools (e.g., screwdrivers, antistatic tweezers) and the official NIHON KOHDEN service manual readily available.

2. Removal of the Old Motherboard

• Open the Chassis: Carefully remove the outer casing of the defibrillator according to the service manual's instructions.

• Document Connections: Take photographs and label all cables, ribbon connectors, and wiring harnesses connected to the existing motherboard before disconnecting them. This ensures correct reconnection later.

• Disconnect Cables: Gently disconnect all cables from the old motherboard. Note that some connectors may have locking mechanisms.

• Unscrew and Remove: Unscrew the motherboard from its mounting points or standoffs. Carefully lift the board straight out of the chassis, avoiding contact with other components.

3. Installation of the New Motherboard

• Inspect the New Board: Visually inspect the new motherboard for any signs of physical damage or bent pins during shipping.

• Position and Secure: Align the new motherboard correctly with the mounting holes and carefully lower it into place. Secure it with the appropriate screws, ensuring it is not flexed or forced.

• Reconnect Cables: Methodically reconnect all cables and wiring harnesses to their exact locations on the new motherboard, using your pre-documentation as a guide. Ensure every connector is firmly seated and any locking mechanisms are engaged.

• Close the Chassis: Once all connections are verified, carefully reattach the defibrillator's outer casing.

4. Post-Installation Testing and Calibration

• Power On: Reinsert the battery and connect the defibrillator to AC power. Power the unit on.

• Run Self-Tests: The device will likely perform an automatic Power-On Self-Test (POST). Observe for any error codes or failures. Manually initiate additional built-in self-tests through the service menu.

• Critical Performance Verification: This is the most crucial step. You must verify the device's safety and performance using a certified defibrillator analyzer. Tests must include:

  • Energy Output Accuracy: Measure the delivered energy (joules) across all available settings to ensure it meets manufacturer specifications.

  • Synchronization (Sync) Function: Verify that the sync pulse is correctly timed to the R-wave of a simulated ECG signal.

  • ECG Waveform Accuracy: Test the acquisition and display of ECG signals for fidelity.

  • Pacer Function (if applicable): Verify the output of the external pacer.

• Functional Check: Test all other key functions, including the display, controls, alarms, recorder, and SpO₂ (if integrated).

5. Documentation and Compliance

• Record the Service: Document the entire procedure in the device's service history log. Include the date, reason for replacement, old and new motherboard part numbers, and the results of all performance verification tests.

• Regulatory Compliance: Ensure that the repair and testing process complies with all relevant hospital policies and medical device regulations, maintaining the device's status for clinical use.

Final Warning: Under no circumstances should unqualified personnel attempt this procedure. Incorrect installation can render the life-saving device inoperable or unsafe, posing a direct risk to patient lives.
